Gutter systems are essential for protecting your home from water damage, and every component plays a vital role. Among the most common and often misunderstood parts are downspout elbows, particularly the A elbow. Understanding what an A elbow is, how it differs from a B elbow, and its specific applications is crucial for ensuring your gutter system functions effectively and directs rainwater safely away from your foundation.
A Elbow vs. B Elbow: Understanding the direction
The distinction between A and B elbows is fundamental to downspout installation. It refers to the direction of the elbow’s bend relative to the flat face of the gutter and the wall of your home.
A Elbow (Side Elbow / Front Elbow):
- Appearance: When you look at an A elbow directly, the opening on one end faces you, and the bend directs the flow parallel to that face. Imagine an “L” shape where the shorter leg points directly out or in, and the longer leg goes up or down.
- Direction of Bend: The bend moves the downspout horizontally (left or right) if you’re holding it vertically, or forwards/backwards if it’s attached horizontally.
- Common Use: Primarily used to connect the gutter outlet to a downspout that runs flush against the house wall or fascia board. It makes the transition from the gutter outlet, directing the downspout towards or away from the wall.
B Elbow (Kick-Out Elbow / Back Elbow):
- Appearance: When you look at a B elbow directly, the opening on one end faces you, but the bend directs the flow perpendicular to that face. Imagine an “L” shape where both legs extend away from you (or towards you).
- Direction of Bend: The bend moves the downspout vertically (up or down) if you’re holding it vertically, or left/right if it’s attached horizontally.
- Common Use: Most frequently used at the bottom of a downspout to kick the water out and away from the foundation. It can also be used at the top if the downspout needs to immediately move sideways to clear an obstruction.
Think of it this way: An A elbow allows the downspout to stay along the plane of the wall, while a B elbow makes the downspout move away from or towards the plane of the wall.
Typical use cases for A Elbows
A elbows are incredibly versatile and are commonly used in several specific scenarios:

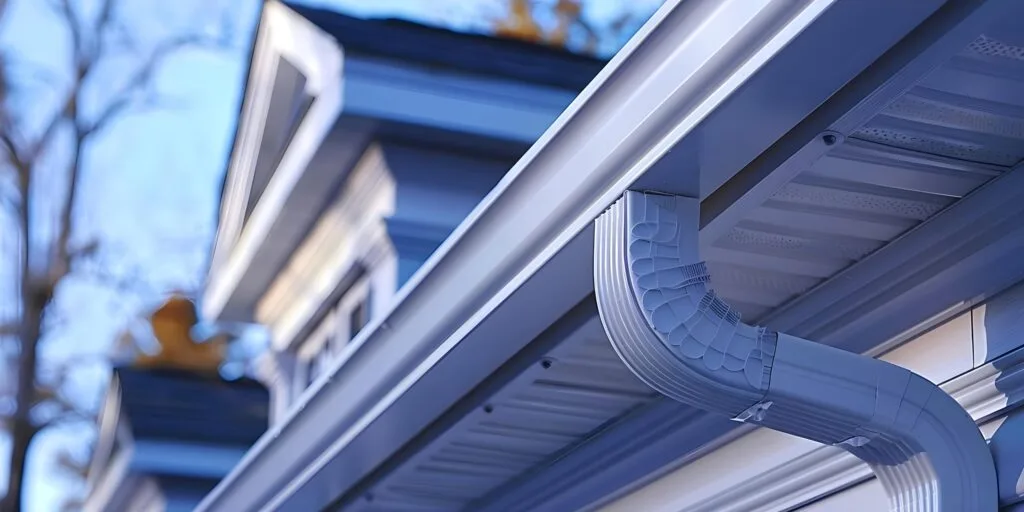

- Connecting Gutter to Downspout (Standard Configuration): This is the most common use. If your downspout runs directly down the side of your house, flush with the wall or fascia, an A elbow will connect the gutter outlet to the top of the downspout. The first A elbow comes off the gutter outlet, points towards the house, and then a second A elbow (sometimes 75∘ or 90∘ depending on the projection) points downwards to connect to the downspout.
- Creating Offsets: A combination of two A elbows (often 75∘ angle) is used to create an “offset” or “kick-out” to bring the downspout out and then back in, around an eave, soffit, or other architectural protrusion.
- The first A elbow directs the downspout away from the wall.
- A short section of straight downspout pipe connects the two elbows.
- The second A elbow then directs the downspout back towards the wall, allowing it to run flush again. This creates a clean, intentional bend around an obstacle.
- Directing Water in Specific Directions at Ground Level: While B elbows are typically used at the bottom to direct water away from the foundation, A elbows might be used if you need to direct water along a wall or to connect to a specific drainage system that requires a bend parallel to the house.
How to install an A Elbow properly
Installing A elbows involves precise measurement and secure fastening for optimal performance.
- Measure and Mark:
- Measure the distance the downspout needs to offset (e.g., from the gutter outlet to the wall).
- Mark the cut points on the straight downspout section that will connect the two elbows if creating an offset.
- Cut Downspout Pipe (If Needed): Use tin snips or a hacksaw to cut the downspout pipe to the correct length. Ensure clean, straight cuts.
- Assemble Elbows and Pipe:
- For an offset: Insert the crimped end of the first A elbow into the gutter outlet. Then insert the straight downspout pipe into the other end of the first elbow. Finally, insert the second A elbow onto the end of the straight pipe.
- For single connection: Insert the crimped end of the A elbow into the gutter outlet, and then the downspout pipe into the other end.
- Dry Fit: Temporarily hold the assembled section in place to ensure it fits correctly and aligns with the wall.
- Secure Connections: Once satisfied with the fit, secure the elbow-to-pipe connections using:
- Sheet Metal Screws: Use 1/2-inch or 3/4-inch hex-head sheet metal screws (self-tapping if possible). Drive two screws per connection point, through the male (crimped) end into the female (uncrimped) end.
- Gutter Sealant (Optional but Recommended): For added leak protection, apply a bead of gutter sealant around the inside of the female end before inserting the male end.
- Attach to Wall: Once the elbows and downspout sections are assembled, secure the downspout to the wall using downspout straps, typically spaced every 6-10 feet.
Pro Tip: Always make sure the upper section of downspout or elbow is crimped (smaller) so it fits into the lower section. This allows water to flow smoothly downwards, preventing leaks.
Materials, sizes, and compatibility
Gutter elbows must match the material and size of your existing downspouts for a proper fit and consistent aesthetic.
- Materials:
- Aluminum: Most common, lightweight, rust-resistant, and comes in a wide array of colors.
- Galvanized Steel: Stronger and more rigid than aluminum, but heavier and prone to rust if not properly coated or maintained.
- Copper: Premium choice, highly durable, naturally forms a protective patina, and is resistant to corrosion. Often chosen for aesthetic appeal on high-end or historic homes.
- Vinyl/PVC: Inexpensive and easy to install, but can become brittle over time, especially in extreme temperatures or under UV exposure.
- Sizes: Elbows are sized to match standard downspout dimensions.
- Residential: Common rectangular sizes are 2×3 inch and 3×4 inch. Round sizes are 3 inch and 4 inch diameter.
- Compatibility: It is crucial that the elbow’s dimensions match your downspout exactly. A 2×3 inch downspout requires a 2×3 inch elbow.
FAQs about downspout elbows
- Do I need an A or B elbow at the bottom of my downspout?
- Almost always a B elbow. This is designed to direct the water out and away from the foundation, preventing erosion.
- Can I use a 90∘ elbow instead of two 75∘ for an offset?
- It’s generally not recommended for offsets from the gutter to the downspout. Two 75∘ elbows provide a gentler curve, allowing for better water flow and reducing the chance of clogs from debris. A single 90∘ elbow creates a sharp turn that can easily trap leaves.
- How do I connect elbows and downspouts?
- Use sheet metal screws (e.g., 1/2 to 3/4 inch hex-head screws). Ensure the upper piece (elbow or downspout) is crimped to fit inside the lower piece, then screw them together. Sealant can be added for extra leak protection.
- Can I paint gutter elbows?
- Yes, if they are unfinished aluminum or galvanized steel. Use a paint designed for exterior metal surfaces. Many aluminum elbows come pre-painted in common gutter colors to match your system.
- How do I know if my gutters are A-style or B-style?
- Gutters themselves are generally not A or B style; it’s the downspout elbows that carry this designation. Your downspouts are either rectangular (2×3, 3×4) or round, and the elbows are designed to fit those dimensions and direct water in an A or B fashion.
Understanding the specific function of an A elbow is a key step in ensuring your gutter system is properly installed and directs rainwater effectively, protecting your home from the ground up.
